The Google Pixel 8a represents Google’s continued commitment to delivering exceptional user experiences powered by sophisticated AI at a competitive price point. Far from being a budget offering, this device is built around the powerful Google Tensor G3 chip, ensuring smooth performance and advanced computational photography features.
Crucially, the user experience is centered on the brilliant 6.1-inch Actua OLED display, which boasts a smooth 120 Hz refresh rate and impressive peak brightness levels, making it a joy for media consumption and daily use. The entire front assembly is protected by Corning Gorilla Glass 3. While robust, any glass surface remains susceptible to impact damage, and when that beautiful OLED panel suffers a break, the intricacies of the internal design become critically important for replacement.

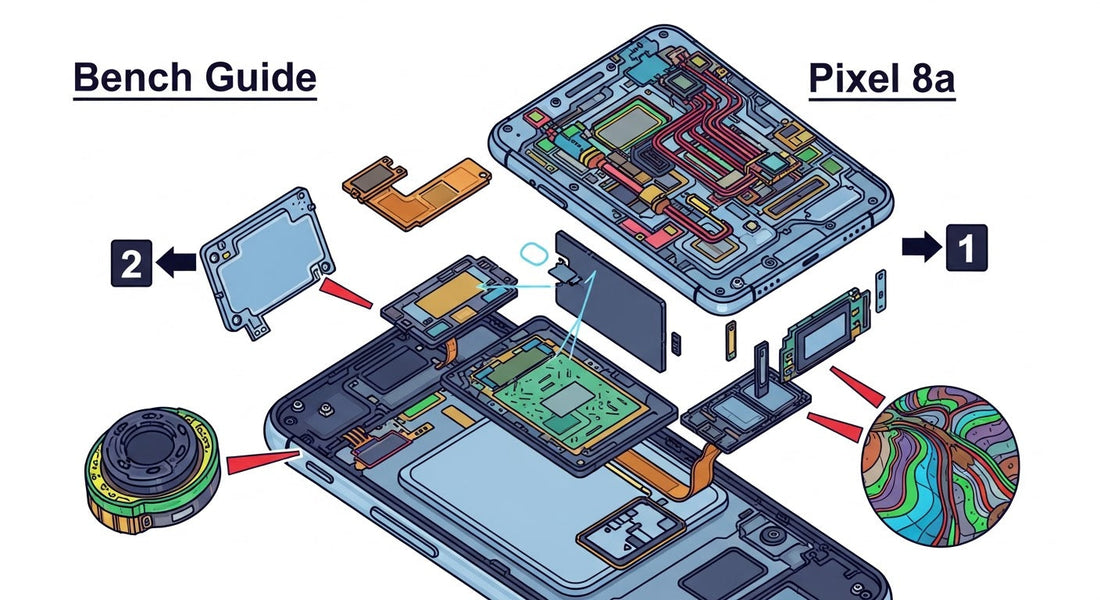

👨🔧 DIY Guide: Navigating the Complexities of Google Pixel 8a Screen Replacement
A cracked screen on a device this advanced can be frustrating, leading many technologically inclined users to consider a do-it-yourself (DIY) repair to save time and cost. But is tackling a screen replacement on a modern smartphone like the Pixel 8a a straightforward task, or is it a job best left to the seasoned technician?
The repair process for a device designed with a high level of water resistance, such as the Pixel 8a’s IP67 rating, requires precision and specific tools. While modern devices are generally designed to be slightly more modular than their predecessors, the screen assembly is securely bonded with strong adhesive and involves multiple delicate connections.
Here is a bench guide overviewing the essential steps and inherent challenges:
Phase 1: Preparation and Opening
- Power Down and Secure: Completely power off the Pixel 8a and eject the SIM tray. Safety is paramount—wear safety glasses, especially if the screen is severely fractured.
- Heat Application: The screen is held in place by strong adhesive that must be softened. Using a heat gun or heated plate, apply gentle, even heat to all four edges of the device for several minutes.
- Pry and Separate: Attach a suction cup near the bottom of the screen. While pulling gently, insert a thin opening pick or prying tool into the seam to create a gap. Crucial Warning: Do not insert the pick more than 3mm deep, particularly along the left side of the phone, as the delicate display flex cable runs there and can be easily severed.
- Open the Assembly: Once the adhesive is cut, the display must be carefully opened like a book, swinging from the right edge, to expose the internal connectors.
Phase 2: Disconnection and Cleaning
- Cable Disconnection: Locate and remove the metal cable cover plate using a precision screwdriver. Use a plastic spudger to gently disconnect the display's press connector from the motherboard. Avoid using metal tools directly on the connectors.
- Frame Preparation: Thoroughly clean all residual adhesive from the perimeter of the phone’s frame. This step is non-negotiable for a successful reassembly and to ensure a proper seal. Isopropyl Alcohol can be used to soften old glue.
Phase 3: Reassembly and Post-Repair Calibration
- New Screen Installation: Transfer any necessary small components (though genuine replacement screens often come with components like the under-display fingerprint sensor pre-installed, significantly simplifying this step).
- Connection and Testing: Apply new adhesive and carefully reconnect the new screen's flex cable to the motherboard. Test the new display (touch sensitivity, colors, brightness) before fully sealing the phone.
- Sealing and Securing: Once tested, press the new screen firmly and evenly into the frame, securing it with clamps or bands to allow the adhesive to cure completely.
- Fingerprint Sensor Calibration (Mandatory): Because the Pixel 8a utilizes an under-display optical fingerprint sensor, replacing the screen requires running Google’s specific calibration tool to ensure the sensor functions correctly. Without this step, the biometric security will fail, rendering a key feature unusable.
Mitigating Risk: The Value Proposition of Expert Repair
Attempting a DIY repair on a complex device like the Pixel 8a carries inherent, significant risks. A single misstep can result in permanently damaging the motherboard, the battery, or the delicate flex cables, turning a screen replacement into a complete device replacement. Furthermore, achieving a factory-quality seal is crucial for preserving the phone’s IP67 dust and water resistance—a level of protection nearly impossible to restore with consumer-grade tools and parts.
At Sydney CBD Repair Centre, our highly trained technicians utilize genuine, OEM-specification parts, ensuring your new Actua display performs exactly as intended, including flawless functionality of the under-display fingerprint sensor. We ensure the repair is completed quickly, often with a fast turnaround, and back our work with a professional warranty. If you require a Pixel 8a Screen Replacement, save yourself the risk, the specialised tools, and the time by contacting the knowledgeable experts at our centre in Haymarket.
