The Samsung Galaxy Z Fold 6 represents a landmark achievement in foldable engineering, housing a massive 7.6-inch Dynamic AMOLED 2X main screen inside an ultra-refined chassis. Powered by the Snapdragon 8 Gen 3 for Galaxy processor and fortified by an Enhanced Armor Aluminum frame, this device achieves an impressive balance of power and portability. Central to its design is Samsung’s Dual Rail Flex Hinge mechanism, which allows the phone to fold completely flat while reducing crease visibility and maintaining structural rigidity across multiple opening angles.
Despite incorporating an upgraded IP48 resistance rating—which introduces formal protection against solid foreign objects greater than 1 mm in size—the complex mechanical hinge remains susceptible to environmental exposure over extended daily use. Because the hinge uses spring-loaded interlocks, internal interlocking gears, and sliding tension plates, foreign contaminants like fine quartz sand, pocket lint, or crystallized liquids can occasionally penetrate the outer housing. When this happens, users experience a gritty crunch, grinding sound, or physical resistance when unfolding their device.
⚙️ A crunching or grinding noise coming from your Galaxy Z Fold 6 isn't just an annoying sound—it is a warning sign that abrasive grit is actively grinding against sensitive mechanical cams and internal screen layers.
Demystifying Hinge Grinding: Root Causes and Cleaning Protocol for the Galaxy Z Fold 6
Understanding why the Samsung Galaxy Z Fold 6 hinge develops a grinding friction requires examining how its internal debris barrier functions, followed by safe maintenance methods to clear foreign particles without destroying delicate components.

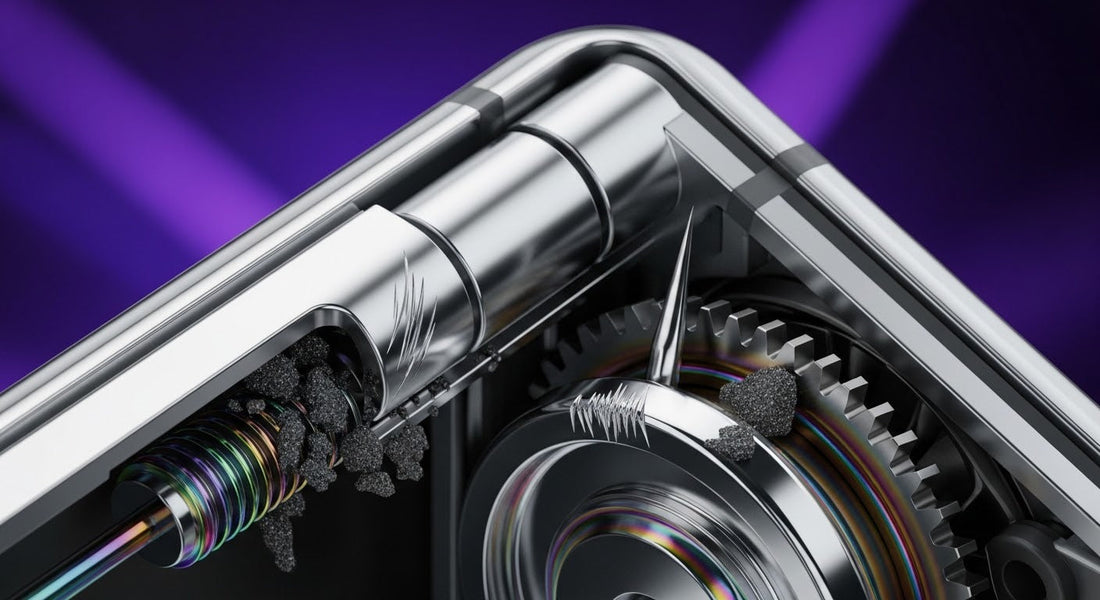

Anatomy of the Crunch: Why Do Foldable Hinges Start Grinding?
- Particulates Bypassing Sweeper Bristles: Inside the hinge housing, Samsung installs microscopic synthetic sweeper bristles designed to push dust out as the phone opens and closes. However, ultra-fine dust, dry soil, or beach sand smaller than the bristle spacing can slide past this perimeter.
- Contaminant Accumulation on Gear Teeth: The Dual Rail Flex Hinge uses tiny synchronized gear tracks to keep both halves of the phone unfolding at identical speeds. When hard particles become jammed between these teeth, every folding motion crushes the debris against the metal alloy, causing a grinding vibration felt through the frame.
- Sticky Fluid Intrusion: Spills involving sugary drinks or sticky fluids dry inside the hinge cavity. Over time, dust adheres to this residue, turning smooth sliding friction plates into rough, gritty surfaces.
Step-by-Step Cleaning Protocol for Minor Hinge Debris
If your Z Fold 6 has recently picked up minor dust or surface grit, use these conservative, non-invasive maintenance steps to help dislodge foreign particles:
- Step 1: Soft Surface Brushing: Close the device completely and use a clean, dry, ultra-soft microfiber brush or anti-static ESD brush. Gently sweep along the outer spine seam to remove surface dust before opening the hinge.
- Step 2: Low-Pressure Manual Air Sweeping: Hold the device with the hinge facing downward at a 45-degree angle. Using a manual rubber air blower (do not use high-pressure compressed air cans, which can freeze components or blast dust under the OLED panel), direct gentle bursts of air across the hinge edges while slowly cycling the fold motion.
- Step 3: Low-Tack Adhesive Pick: Fold the device to a 90-degree angle. Take a strip of low-tack painter's tape or sticky note edge, carefully insert the paper edge into the slight gap between the outer hinge spine and the chassis housing, and slide it laterally to pull out accumulated pocket lint.
- Step 4: Perimeter Isopropyl Cleaning: Dampen a lint-free microfiber cloth slightly with 99% isopropyl alcohol (never pour or spray liquids directly into the device). Wipe along the visible metal spine edges to dissolve sticky surface oils.
⚠️ Critical Service Warning: Never submerse a grinding Z Fold 6 in water, wash it under running taps, or insert sharp metal needles, paperclips, or heavy industrial air hoses into the hinge cavity. Puncturing the subterranean flex ribbons or pressing against the backside of the flexible AMOLED panel will destroy the display, creating permanent black spots or green vertical lines across the crease.
Why Professional Hinge Servicing Protects Your Galaxy Z Fold 6 Investment
When non-invasive cleaning fails to clear a grinding hinge, it indicates that abrasive particles or debris have become trapped behind the sweeper arrays or deep within the gear mechanism. Continuing to force open a grinding foldable screen risks snapping internal support plates or puncturing the Ultra-Thin Glass (UTG) layer from underneath. Resolving deep mechanical blockages requires precise disassembly, acoustic inspection, and specialized micro-cleaning techniques performed in a dust-controlled environment.
