The Samsung Galaxy Z Flip 7 represents the cutting edge of modern mobile engineering, pairing a high-refresh-rate Dynamic AMOLED 2X flexible main screen with a sleek, ultra-compact clamshell design. Underneath its refined exterior sits a multi-layered display matrix incorporating Ultra-Thin Glass (UTG), specialized protective polymers, and a precision dual-rail hinge mechanism. Built within a reinforced Armor Aluminum housing, the device distributes its core computing components, dual-battery cell system, and complex flex-cable arrays across two distinct structural halves joined by a central mechanical spine.
Because foldable smartphones operate under constant mechanical stress during daily opening and closing cycles, every structural tolerance within the Z Flip 7 is measured in fractions of a millimeter. The internal layout requires absolute alignment between the flexible display assembly, the central hinge housing, and the delicate electronic boards that power the device. Consequently, maintaining structural rigidity and seamless folding dynamics requires an architectural framework fundamentally different from traditional flat glass-slab smartphones.
🛠️ If you have ever wondered why mobile repair technicians cannot simply "peel off" a cracked foldable display and glue down a fresh panel on a Galaxy Z Flip 7, the answer lies deep within Samsung’s advanced manufacturing process and structural chassis architecture.

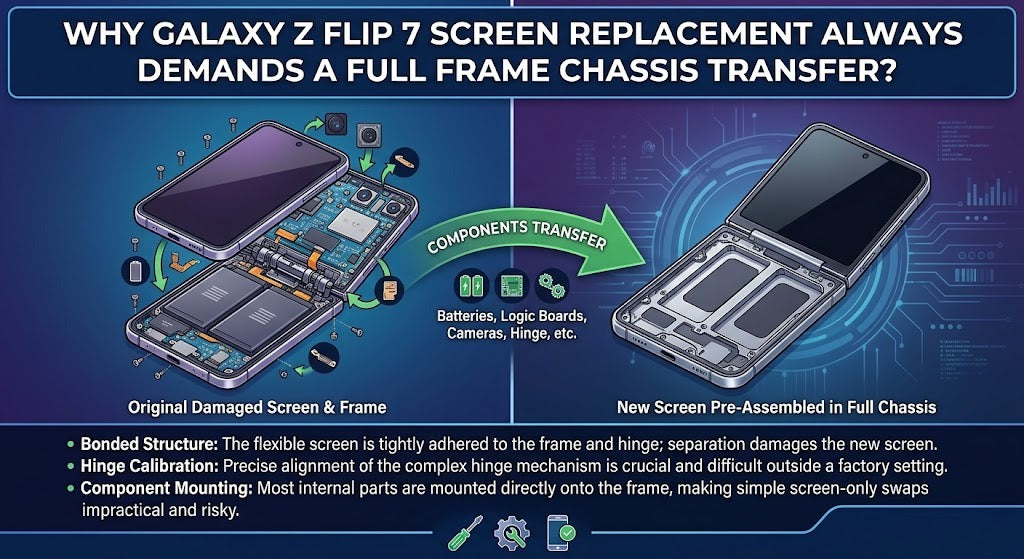

The Engineering Behind Foldable Displays: Why the Z Flip 7 Screen and Frame Are Inseparable
When repairing a standard flat smartphone, technicians can frequently isolate and separate the top glass or display panel from the outer metal perimeter. However, on the Samsung Galaxy Z Flip 7, replacing the folding main screen strictly requires installing an official "Service Pack" module that comes factory-bonded to a completely new middle frame and hinge chassis. This process necessitates a total component transfer from the damaged chassis into the new frame assembly.
Here are the primary technical reasons why a screen replacement on the Z Flip 7 always demands a full frame chassis transfer:
- Factory Cleanroom Lamination & UTG Fragility: The Z Flip 7 flexible screen is not a single piece of glass, but a complex, multi-layered sandwich consisting of an OLED panel, a capacitive digitizer matrix, a shock-absorbing substrate, and a micro-thin layer of Ultra-Thin Glass (UTG). These layers are molecularly bonded under industrial cleanroom conditions directly to the inner magnesium-aluminum support chassis. Attempting to pry a damaged flexible screen off the frame destroys the underlying OLED panel instantly and permanently deforms the ultra-thin support plates.
- Hinge Alignment & Mechanical Tensioning: The dynamic hinge mechanism operates directly beneath the flexible crease of the main panel. The inner frame features micro-milled guide channels, structural alignment pins, and debris-blocking sweepers that support the screen as it flexes. If a loose flexible display panel were adhered to an existing frame—which may have suffered microscopic twists or bending during a drop—the uneven mechanical stress would cause the UTG layer to fracture along the crease within a few fold cycles.
- Thermal Dissipation and Structural Grounding: The middle chassis of the Z Flip 7 doubles as the primary heat sink and electrical ground for the high-performance processor, dual batteries, and power management circuits. Official service pack assemblies come equipped from the factory with pre-applied thermal graphite sheets, grounding pads, and pre-cut water/dust seals. Reusing a stressed frame compromises thermal conductivity and strips away critical environmental sealing.
- The Full Component Migration Process: Because the replacement display arrives pre-fused to the brand-new frame chassis, repair technicians must perform a comprehensive teardown of the damaged device. Every internal component—including the main motherboard, sub-board, top and bottom battery cells, front and rear camera modules, speaker enclosures, wireless charging coils, and interconnect ribbon cables—must be systematically uninstalled from the old frame and rebuilt inside the pristine new display chassis.
Attempting to perform a "screen-only" separation on a foldable device has a near-zero success rate and frequently results in permanent motherboard damage, misaligned hinge mechanics, and completely ruined display panels.
Why Professional Precision is Essential for Foldable Repairs
Replacing the screen on a foldable flagship like the Samsung Galaxy Z Flip 7 is one of the most technical procedures in modern mobile repair. Because the process involves completely stripping down the device to its core logic boards and dual-battery system before migrating everything into a fresh display-chassis assembly, there is zero margin for error. A single misplaced screw, torn flex cable, or misaligned magnet can leave the phone unbootable or compromise its folding mechanics.
For Z Flip 7 owners, securing an authentic, factory-grade replacement assembly handled by experienced repair professionals is the only way to preserve factory performance, smooth folding dynamics, and structural integrity. At Sydney CBD Repair Centre, senior technicians utilize specialized micro-tools, anti-static environments, and genuine OEM-specification service modules to perform seamless full-chassis transfers, ensuring your foldable device performs just like the day you unboxed it.
