The Samsung Galaxy Z Fold 7 represents the pinnacle of foldable smartphone engineering, combining a refined hinge mechanism with cutting-edge flexible display architecture. Featuring a massive primary folding Dynamic AMOLED 2X panel protected by ultra-thin flexible glass technology, high refresh rates, and top-tier processor performance, this flagship device provides an tablet-like experience in a pocketable form factor. However, the intricate mechanical tolerances and layered construction required to enable its seamless folding capability make it one of the most structurally complex mobile devices on the market today.
When the interior display suffers mechanical damage—such as black spots, bleeding ink, dead touch zones, or fractures along the folding crease—a full inner screen assembly replacement becomes necessary. Because the primary flexible screen is bonded directly to the midframe and hinge mechanism, replacing the inner display requires migrating nearly every internal component, motherboard, and battery cell into a factory-preassembled frame and hinge chassis.
🛠️ Replacing a foldable inner display requires meticulous precision
Specialized thermal tools, and extreme care. Below is a detailed, step-by-step technical breakdown of how an inner screen assembly replacement is performed on the Samsung Galaxy Z Fold 7.

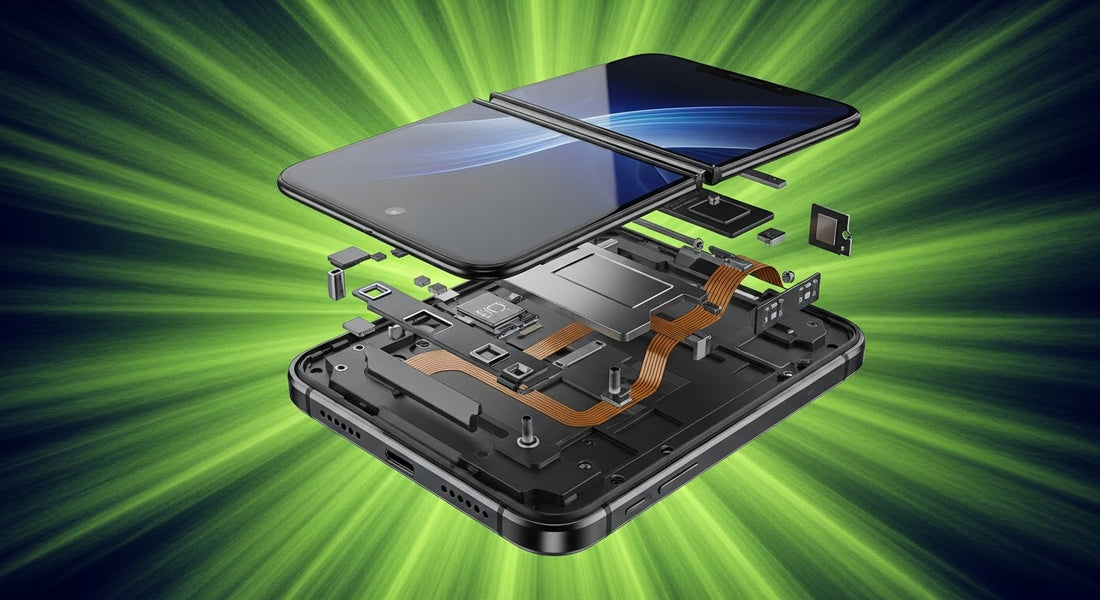

Master Guide: Step-by-Step Samsung Galaxy Z Fold 7 Inner Screen Assembly Replacement
To complete this procedure safely, technicians utilize a heated separator mat, ESD-safe nylon spudgers, suction handles, precision driver bits (PH00), isopropyl alcohol (99%), and a pre-cut replacement inner display assembly with chassis.
-
Power Down and Back Panel Removal: (10-15 mins)
Power off the Galaxy Z Fold 7 completely. Place the closed device face down on a thermal heating pad at 75°C for 5 minutes to soften the perimeter adhesive securing the outer rear glass panel. Attach a suction handle near the lower edge and lift gently to create a microscopic gap, inserting a thin plastic pick. Slide the pick around the perimeter to sever the water-resistant adhesive seals. Carefully lift off the back glass cover, ensuring no antenna flex cables adhering to the interior shell are torn.
How to verify: Confirm the back cover is fully detached without cracks, and inspect internal antenna flex cables for damage. -
Disconnect Power & Midframe Shielding: (10 mins)
Unscrew the perimeter PH00 screws holding down the upper wireless charging coil assembly, speaker housing, and motherboard protective shrouds. Gently lift and remove the plastic bracket shields. Locate the dual battery connectors attached to the main logic board and sub-board. Use an ESD-safe nylon spudger to gently pop off both battery flex cables immediately to cut electrical power to the system.
How to verify: Check that no power is flowing to the board and all protective metal and plastic brackets are safely set aside in a magnetic tray. -
Outer Display and Camera Module Removal: (15 mins)
Re-warm the device to soften the adhesive beneath the outer cover screen. Apply suction and slip a thin pick under the edge of the front display to slice through the adhesive, lifting the panel carefully to unclip its display flex cable from the chassis. Proceed to unclip and remove the rear main camera cluster, front selfie camera, and sensor arrays from their recessed sockets on the motherboard.
How to verify: Ensure the front cover display and camera modules are completely removed and free of dust or fingerprints on lens surfaces. -
Motherboard, Sub-Board, and Component Extraction: (20 mins)
Remove remaining retention screws securing the main logic board, charging port sub-board, haptic motor, and speaker enclosures. Unclip all interconnect flex cables bridging the dual halves of the device across the central hinge. Carefully lift out the primary motherboard and lower sub-board. Apply a few drops of high-purity isopropyl alcohol around the dual battery compartments to soften the adhesive, then use a flat suction adhesive tool to lift both battery cells cleanly without bending or puncturing them.
How to verify: Verify that both chassis halves of the damaged screen assembly are stripped down to the bare aluminum frame and that both batteries remain flat and unpunctured. -
Component Migration to New Inner Screen Assembly: (20 mins)
Unpack the OEM-specification replacement inner screen assembly, which includes a factory-bonded flexible AMOLED panel, hinge structure, and fresh aluminum chassis frame. Systematically transfer the vibration motor, lower speaker module, charging port assembly, dual batteries, and primary motherboard into the new frame. Seat each component carefully into its designated recess and reinstall retention screws to specification.
How to verify: Check that all circuit boards lay flat within alignment guides and that the delicate flex cables pass cleanly through the hinge channels without crimping. -
Pre-Sealing Functional Test: (10 mins)
Before applying fresh adhesive, temporarily connect the dual batteries and the outer cover display. Press and hold the power button to boot up the Galaxy Z Fold 7. Test the inner folding display thoroughly: check touch responsiveness across all grid areas, verify smooth folding operation along the central crease, test camera feeds, audio output, and S-Pen/stylus digitizer responsiveness if equipped.
How to verify: Ensure the inner screen illuminates uniformly without lines or dead pixels and that touch input registers seamlessly across the entire crease area. -
Adhesive Application and Final Assembly: (15 mins)
Power off the phone and disconnect external test leads. Clean all old adhesive residue from the perimeter of the outer glass panels using isopropyl alcohol. Apply fresh, custom die-cut adhesive strips to the rear glass and cover screen chassis boundaries. Reconnect the cover display and fold out internal ribbons, then press the panels firmly into place. Secure the phone in a specialized display press or uniform clamping fixture for 20 minutes to achieve a factory-grade seal.
How to verify: Inspect all outer seams to confirm there are no gaps, uneven alignments, or lifted edges around the device perimeter.
Why Professional Installation is Crucial for Foldable Repairs
While DIY tutorials offer an overview of the inner screen replacement process, attempting this repair at home carries an exceptionally high risk of failure. Foldable smartphones feature tightly tolerance-engineered hinges, ultra-thin multi-layered displays, and dual-battery systems connected across moving mechanical joints. A minor misalignment of a flex cable during hinge insertion or slight over-tightening of a screw can permanently sever display traces or crush the inner OLED panel.
Entrusting your flagship foldable to trained specialists ensures your device is serviced using specialized alignment tools, dust-free clean environments, and genuine OEM-specification replacement parts. Professional technicians preserve critical system functions, maintain strict thermal limits, and safeguard your internal data throughout the procedure.
